| Electrical data |
| Operating voltage [V] | 10…30 DC; (“supply class 2” to cULus) |
| Current consumption [mA] | 75; (24 V) |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length [nm] | 650 |
| Typ. lifetime [h] | 50000 |
| Inputs / outputs |
| Number of inputs and outputs | Number of digital outputs: 2 |
| Outputs |
| Total number of outputs | 2 |
| Electrical design | PNP |
| Number of digital outputs | 2 |
| Output function | normally open / normally closed; (complementary) |
| Max. current load per output [mA] | 100 |
| Switching frequency DC [Hz] | 11 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
| Detection zone |
| Max. light spot diameter [mm] | 5 |
| Light spot dimensions refer to | 2 m |
| Detection range hysteresis [%] | < 2.5 |
| Note on monitoring range hysteresis | |
| Background suppression available | yes |
| Background suppression [m] | < 20 |
| Measuring/setting range |
| Measuring range [m] | 0.03…2 |
| Sampling rate [Hz] | 33 |
| Interfaces |
| Communication interface | IO-Link |
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| IO-Link device ID | 372d / 00 01 74h |
| Profiles | Smart Sensor: Sensor Identification; Binary Data Channel; Process Value; Sensor Diagnosis |
| SIO mode | yes |
| Process data analogue | 1 |
| Process data binary | 1 |
| Min. process cycle time [ms] | 6.6 |
| Operating conditions |
| Ambient temperature [°C] | -25…60 |
| Note on ambient temperature | | at ta < -10 °C warm-up is necessary, laser is off | |
| Protection | IP 65; IP 67 |
| Max. immunity to extraneous light [klx] | 10; (on the object) |
| Tests / approvals |
| EMC | |
| Laser protection class | 2 |
| Notes on laser protection | | Caution: | laser light | | Power: | <= 4,0 mW | | Wave length: | 650 nm | | pulse: | 1,3 ns | | Do not stare into beam. | | | Avoid exposure to the laser light. | | | laser class: | 2 | | EN / IEC60825-1:2007 | | EN / IEC60825-1:2014 | | Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007. | |
| MTTF [years] | 151 |
| Mechanical data |
| Weight [g] | 85 |
| Housing | rectangular |
| Dimensions [mm] | 56 x 18.2 x 46.8 |
| Materials | housing: PA; bezel: stainless steel; operator interface: TPU; lens: PMMA |
| Lens alignment | side lens |
| Displays / operating elements |
| Display | | switching status | LED, yellow switching output PIN 4 | | operation | LED, green | | Display | alphanumeric display, 3-digit | |
| Display unit | cm |
| Remarks |
| Pack quantity | 1 pcs. |
| Electrical connection |
| Connection | Connector: 1 x M12 |
| Diagrams and graphs |

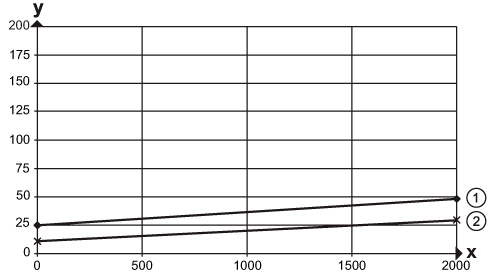

| hysteresis graph |  | x: | distance [mm] | | y: | Hysteresis [mm] | | 1 = | background black 6 % remission | | 2 = | background white 90 % remission | |
| Other data |
| Accuracy |
| Accuracy | | | | | distance | black (6 % remission) | white (90 % remission) | | | | 0 mm | ± 15 mm | ± 15 mm | | | | 500 mm | ± 15 mm | ± 15 mm | | | | 1000 mm | ± 15 mm | ± 15 mm | | | | 1500 mm | ± 20 mm | ± 20 mm | | | | 2000 mm | ± 30 mm | ± 20 mm | | | |
| Extraneous light on the object | < 10 klx | |
