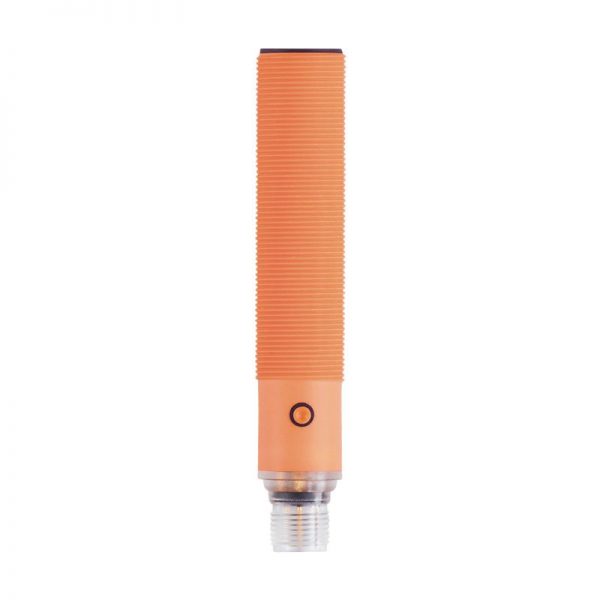

| Electrical data |
| Operating voltage [V] | 10…30 DC; (“supply class 2” to cULus) |
| Current consumption [mA] | 55 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | < 0.3 |
| Converter frequency [kHz] | 230 |
| Inputs / outputs |
| Number of inputs and outputs | Number of digital outputs: 1; Number of analogue outputs: 1 |
| Outputs |
| Total number of outputs | 2 |
| Electrical design | PNP |
| Number of digital outputs | 1 |
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC [V] | 2.2 |
| Permanent current rating of switching output DC [mA] | 100 |
| Switching frequency DC [Hz] | 3 |
| Number of analogue outputs | 1 |
| Analogue current output [mA] | 4…20 |
| Max. load [Ω] | 500 |
| Short-circuit protection | yes |
| Overload protection | yes |
| Resolution of analogue output | < 3 mm |
| Detection zone |
| Sensing range [mm] | 150…1600 |
| Blind zone [mm] | 150 |
| Angle of aperture cylindrical [°] | 7; (±2) |
| Max. deviation from the 90° angle sensor/object [°] | ± 4 |
| Accuracy / deviations |
| Notes on the accuracy / deviation | The indicated values are reached after a warm-up time of min. 20 minutes |
| Temperature compensation | yes |
| Hysteresis [%] | 1 |
| Switch point drift [%] | -5…5 |
| Linearity error of analogue output [%] | 1 |
| Interfaces |
| Communication interface | IO-Link |
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | Smart Sensor: Process Data Variable; Device Identification |
| SIO mode | yes |
| Required master port type | A |
| Min. process cycle time [ms] | 3.2 |
| Operating conditions |
| Ambient temperature [°C] | -20…70 |
| Protection | IP 67 |
| Tests / approvals |
| EMC | | EN 61000-4-2 ESD | 4 kV CD / plastics | | 8 kV AD / metal | | EN 61000-4-3 HF radiated | 3 V/m | | EN 61000-4-4 Burst | 2 kV | | EN 61000-4-6 HF conducted | 3 V | | EN 55011 | Class A | |
| Vibration resistance | | EN 60068-2-6 Fc | (10-55) Hz 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz | |
| Shock resistance | |
| MTTF [years] | 144 |
| Mechanical data |
| Weight [g] | 66 |
| Housing | threaded type |
| Dimensions [mm] | M18 x 1 / L = 97.5 |
| Thread designation | M18 x 1 |
| Materials | PBT; PA; epoxy glass ceramics |
| Displays / operating elements |
| Display | | switching status | 2 LED, yellow | | echo | 1 LED, green | |
| Accessories |
| Accessories (supplied) | | lock nuts: 2, plastics | | rubber washers: 2 | |
| Remarks |
| Remarks | | operating voltage “supply class 2” according to cULus | |
| Pack quantity | 1 pcs. |
| Electrical connection |
| Connection | Connector: 1 x M12 |
| Diagrams and graphs |
|  | 1: | distance | | 2: | Detection zone | | 3: | switch-on/switch-off graph | | 4: | Target 200 x 200 mm | | 5: | 50 % of the target in the detection zone | | 6: | switch point | |
