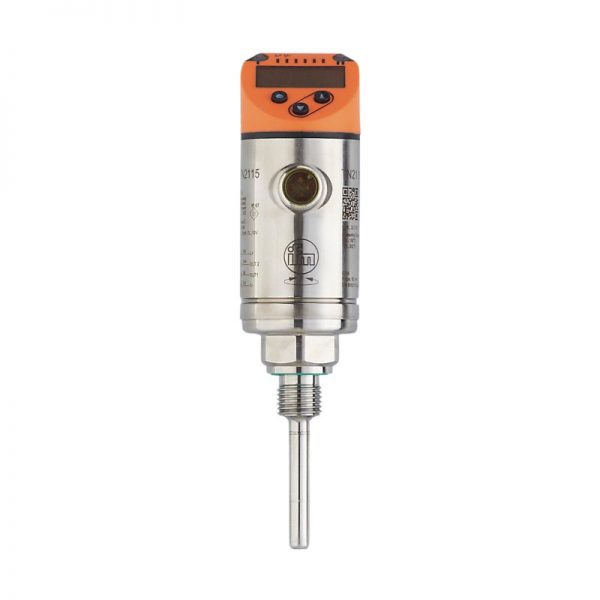

| Application |
| Measuring element | 1 x Pt 1000; (to DIN EN 60751, class A) |
| Media | liquids and gases |
| Pressure rating [bar] | 400 |
| Electrical data |
| Operating voltage [V] | 18…32 DC; (“supply class 2” to cULus) |
| Current consumption [mA] | < 50 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | 1 |
| Integrated watchdog | yes |
| Inputs / outputs |
| Number of inputs and outputs | Number of digital outputs: 2; Number of analogue outputs: 1 |
| Outputs |
| Total number of outputs | 2 |
| Output signal | switching signal; analogue signal; IO-Link; (configurable) |
| Electrical design | PNP/NPN |
| Number of digital outputs | 2 |
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 250 |
| Number of analogue outputs | 1 |
| Analogue current output [mA] | 4…20 |
| Max. load [Ω] | 500 |
| Analogue voltage output [V] | 0…10 |
| Min. load resistance [Ω] | 2000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
| Measuring/setting range |
| Measuring range | |
| Factory setting | -50…150 °C |
| Set point SP | | -49.8…150 °C | -57.6…302 °F | |
| Reset point rP | | -50…149.8 °C | -58…301.6 °F | |
| Analogue start point | |
| Analogue end point | |
| In steps of | |
| Resolution |
| Resolution of switching output [K] | 0.1 |
| Resolution of analogue output [K] | current output: MS / 4096; voltage output: MS / 3561 |
| Resolution of display [K] | 0.1 |
| Accuracy / deviations |
| Switch point accuracy [K] | ± 0,3 + (± 0,1 % MS) |
| Precision analogue output [K] | ± 0,3 + (± 0,1 % MS) |
| Display accuracy [K] | ± 0,3 + (± 0,1 % MS) |
| Temperature coefficient [% of the span / 10 K] | 0,1; (in case of deviation from the reference condition 25 ± 5 °C) |
| Response times |
| Dynamic response T05 / T09 [s] | 1 / 3; (to DIN EN 60751) |
| Software / programming |
| Parameter setting options | hysteresis / window; normally open / normally closed; switching logic; switch-on/switch-off delay; Damping; Display unit; current/voltage output |
| Interfaces |
| Communication interface | IO-Link |
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| Operating conditions |
| Ambient temperature [°C] | -25…80 |
| Storage temperature [°C] | -40…100 |
| Protection | IP 67 |
| Tests / approvals |
| EMC | | DIN EN 61000-6-2 | | | DIN EN 61000-6-3 | | |
| Shock resistance | | DIN IEC 68-2-27 | 50 g (11 ms) | |
| Vibration resistance | | DIN EN 60068-2-6 | 20 g (10…2000 Hz) | |
| MTTF [years] | 207 |
| UL approval | |
| Mechanical data |
| Weight [g] | 213.5 |
| Materials | stainless steel (1.4404 / 316L); PBT+PC-GF30; PBT-GF20; PC |
| Materials (wetted parts) | stainless steel (1.4404 / 316L); O-ring: FKM |
| Process connection | threaded connection G 1/4 |
| Installation length EL [mm] | 50 |
| Displays / operating elements |
| Display | | Display unit | 2 x LED, green | | switching status | 2 x LED, yellow | | measured values | alphanumeric display, red/green 4-digit | |
| Remarks |
| Remarks | | MS = set measuring span | | The values for accuracy apply to flowing water. | |
| Pack quantity | 1 pcs. |
| Electrical connection |
| Connection | Connector: 1 x M12; Contacts: gold-plated |
