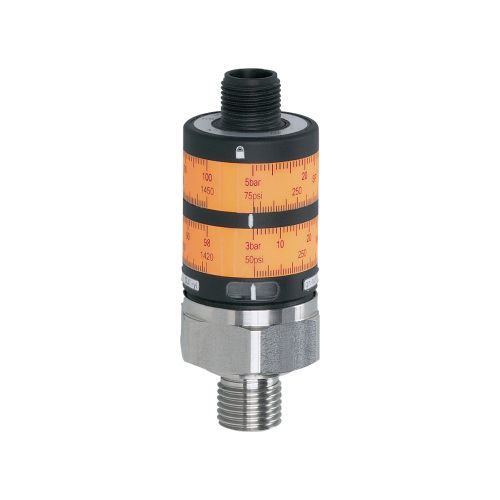

| Product characteristics |
| Number of inputs and outputs | Number of digital outputs: 2 |
| Measuring range | |
| Process connection | threaded connection G 1/4 external thread internal threadM5 |
| Application |
| Media | liquids and gases |
| Medium temperature [°C] | -25…80 |
| Pressure rating | |
| Min. bursting pressure | |
| Type of pressure | relative pressure |
| Electrical data |
| Operating voltage [V] | 9.6…32 DC |
| Current consumption [mA] | < 25 |
| Min. insulation resistance [MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
| Inputs / outputs |
| Number of inputs and outputs | Number of digital outputs: 2 |
| Outputs |
| Total number of outputs | 2 |
| Output signal | switching signal |
| Electrical design | PNP |
| Number of digital outputs | 2 |
| Output function | normally open |
| Max. voltage drop switching output DC [V] | 2 |
| Permanent current rating of switching output DC [mA] | 500 |
| Switching frequency DC [Hz] | 100 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
| Measuring/setting range |
| Measuring range | |
| Set point SP | |
| Hysteresis | |
| Accuracy / deviations |
| Switch point accuracy [% of the final value] | < ± 2,5; (Setting accuracy) |
| Repeatability [% of the final value] | < ± 0,5; (with temperature fluctuations < 10 K) |
| Characteristics deviation [% of the final value] | < ± 1,5 (BFSL) / < ± 2,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting) |
| Temperature drift per 10 K | < ± 0.5 |
| Software / programming |
| Adjustment of the switch point | setting rings |
| Operating conditions |
| Ambient temperature [°C] | -25…80 |
| Storage temperature [°C] | -40…100 |
| Protection | IP 67 |
| Tests / approvals |
| EMC | | EN 61000-4-2 ESD | 4 kV CD / 8 kV AD | | EN 61000-4-3 HF radiated | 10 V/m | | EN 61000-4-4 Burst | 2 kV | | EN 61000-4-6 HF conducted | 10 V | |
| Shock resistance | | DIN IEC 68-2-27 | 50 g (11 ms) | |
| Vibration resistance | | DIN IEC 68-2-6 | 20 g (10…2000 Hz) | |
| MTTF [years] | 500 |
| Pressure Equipment Directive | Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Mechanical data |
| Weight [g] | 94.5 |
| Materials | PBT; PC; FKM; stainless steel (1.4404 / 316L) |
| Materials (wetted parts) | stainless steel (1.4404 / 316L); FKM |
| Min. pressure cycles | 50 million |
| Tightening torque [Nm] | 25 |
| Process connection | threaded connection G 1/4 external thread internal threadM5 |
| Restrictor element integrated | no (can be retrofitted) |
| Displays / operating elements |
| Display | | switching status | 2 x LED, yellow | |
| With scale | yes |
| Remarks |
| Pack quantity | 1 pcs. |
| Electrical connection |
| Connection | Connector: 1 x M12 |
