| Application |
| Pressure rating [bar] | 100 |
| Electrical data |
| Operating voltage [V] | 10…30 DC |
| Current consumption [mA] | < 10 |
| Protection class | III |
| Reverse polarity protection | yes |
| Outputs |
| Electrical design | PNP |
| Output function | normally open |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 100 |
| Switching frequency DC [Hz] | 5000 |
| Short-circuit protection | yes |
| Overload protection | yes |
| Detection zone |
| Sensing range [mm] | 70; (referred to magnet M 4.0) |
| Response sensitivity [mT] | 0.9 |
| Accuracy / deviations |
| Hysteresis [% of Sr] | 1…10 |
| Operating conditions |
| Ambient temperature [°C] | 0…100 |
| Protection | IP 65; IP 68; IP 69K |
| Tests / approvals |
| EMC | | EN 61000-4-2 ESD | 4 kV CD / 8 kV AD | | EN 61000-4-3 HF radiated | 10 V/m | | EN 61000-4-4 Burst | 2 kV | | EN 61000-4-5 Surge | 0,5 kV line to line, Ri: 2 Ohm | | EN 61000-4-6 HF conducted | 10 V | | EN 55011 | class B | | DIN ISO 11452-2 | 100 V/m | |
| Mechanical data |
| Weight [g] | 49.3 |

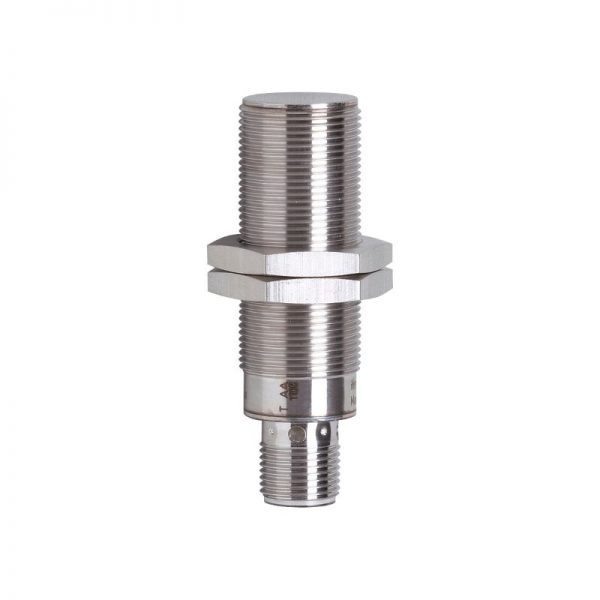

| Housing | threaded type |
| Dimensions [mm] | M18 x 1 / L = 60 |
| Thread designation | M18 x 1 |
| Materials | housing: stainless steel (1.4404 / 316L); sensing face: stainless steel (1.4404 / 316L); lock nuts: stainless steel; plug: PEI |
| Full-metal housing | yes |
| Displays / operating elements |
| Display | | switching status | 4 x 90° LED, yellow | |
| Accessories |
| Accessories (supplied) | |
| Remarks |
| Pack quantity | 1 pcs. |
| Electrical connection – plug |
| Connection | Connector: 1 x M12; Contacts: gold-plated |
