| Application |

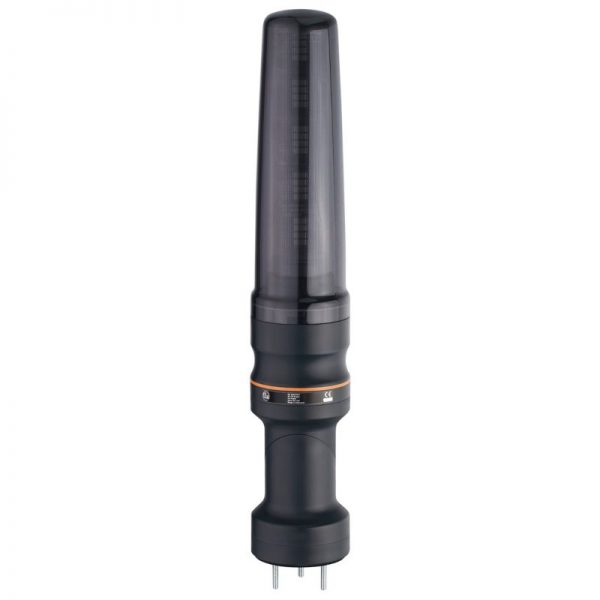

| Application | signalling machine conditions |
| Electrical data |
| Operating voltage [V] | 18…30 DC; (to SELV/PELV) |
| Nominal voltage DC [V] | 24 |
| Current consumption [mA] | < 200 |
| Inputs / outputs |
| Number of inputs and outputs | Number of digital inputs: 6 |
| Inputs |
| Number of digital inputs | 6 |
| Input current High [mA] | 6 |
| Interfaces |
| Communication interface | IO-Link |
| Transmission type | COM2 (38.4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| IO-Link device ID | 850 d / 00 03 52 h |
| SIO mode | yes |
| Required master port type | A |
| Min. process cycle time [ms] | 3.2 |
| Operating conditions |
| Ambient temperature [°C] | -25…50 |
| Storage temperature [°C] | -40…75 |
| Max. relative air humidity [%] | 90 |
| Air pressure [kPa] | < 106 |
| Max. height above sea level [m] | 2000 |
| Protection | IP 54 |
| Mechanical data |
| Weight [g] | 647.5 |
| Type of mounting | Mounting base |
| Dimensions [mm] | Ø 70 / L = 384 |
| Materials | housing: ABS; lens: PC |
| Displays / operating elements |
| Display | | status | 1 LED, green | | LED segment | 5 x 4 LEDs | |
| Acoustic signal | buzzer |
| Max. sound pressure [dB] | 85 |
| Remarks |
| Remarks | | For further information please see the operating instructions. | |
| Pack quantity | 1 pcs. |
| Electrical connection |
| Connection | Connector: M12 |
